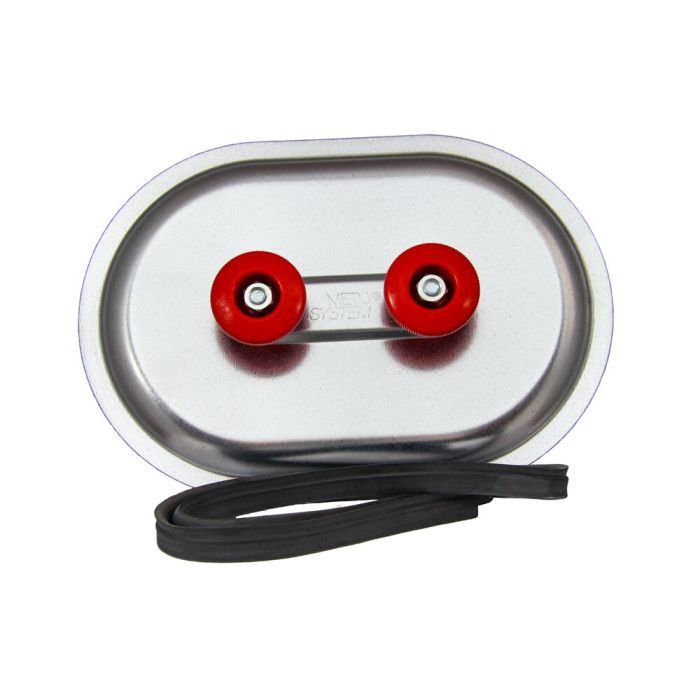

Acess door RD 18 - SKK V2A
180 x 80, with edge protection, stainless steel
Article number
600KE
Acess door RD 18 - SKK V2A is available to buy in increments of 1
opening size: 180 x 80 mm
with self-adhesive rubber edge molding
with PE gasket
The MEZ-ACCESS DOOR RD 18 SKK has a self-adhesive rubber edge molding which protects you from injuries at the assembly or disassembly and at the same time it serves as a gasket. The MEZ-ACCESS DOOR RD 18 SKK is made of stainless steel, has a temperature resistance from -70 to +80°C and the clearance between the duct wall and the upper edge of the knob or lever in closed position should be approx. 37 mm. The two POM knobs allow a comfortable handling and operation of the MEZ-ACCESS DOOR RD 18 SKK. The gasket consists of polyethylene and the maximum pressure is 2.500 Pa.
with self-adhesive rubber edge molding
with PE gasket
The MEZ-ACCESS DOOR RD 18 SKK has a self-adhesive rubber edge molding which protects you from injuries at the assembly or disassembly and at the same time it serves as a gasket. The MEZ-ACCESS DOOR RD 18 SKK is made of stainless steel, has a temperature resistance from -70 to +80°C and the clearance between the duct wall and the upper edge of the knob or lever in closed position should be approx. 37 mm. The two POM knobs allow a comfortable handling and operation of the MEZ-ACCESS DOOR RD 18 SKK. The gasket consists of polyethylene and the maximum pressure is 2.500 Pa.
| Teilegruppe | 160103 |
|---|---|
| Material | Edelstahl V2A |
If you miss a download, please write us via our contact form.
| Product range | Type | Description | Language | File extension | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
