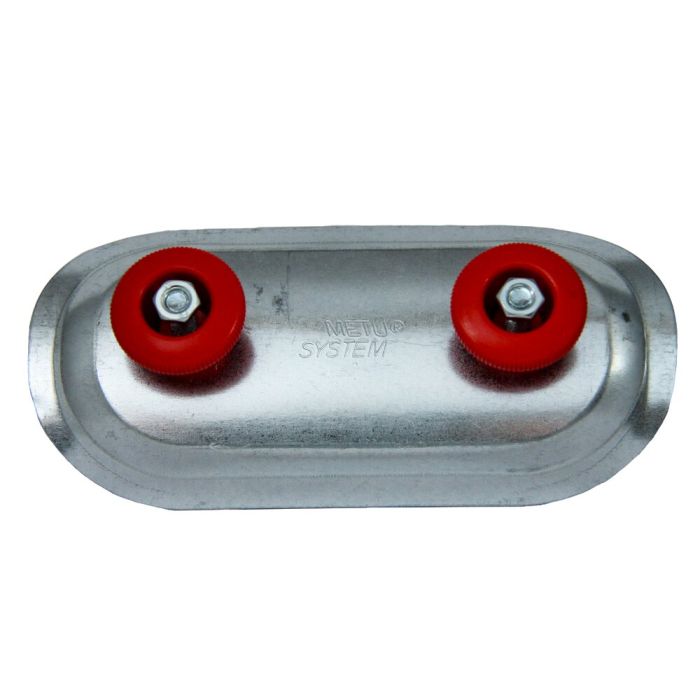

Access door RRD 18-7 - AL
Access door RRD 18-7 - AL | 180x80 mm, aluminium | Ø 71 mm
Article number
630/071A
Access door RRD 18-7 - AL is available to buy in increments of 1
Versatile inspection opening for round air ducts
Air tightness class D according to DIN EN 1507
Revision RRD 18 is an inspection cover for circular air control systems. The Access Door RRD 18 is made of aluminium and has a polyethylene seal. The two rotary handles, which allow two-handed and safe handling, are made of POM-C and have a maximum clamping force of 1,000 to 1,500 Nm.
The inspection opening RRD 18 is designed for a temperature range from -70°C to +70°C, the cut-out of the RRD 18 is 180 x 80 mm and the standard pipe diameter is NW 71. The installation height is approx. 36 mm and the maximum pressure of the RRD 18 is ± 2,500 Pa.
Air tightness class D according to DIN EN 1507
Revision RRD 18 is an inspection cover for circular air control systems. The Access Door RRD 18 is made of aluminium and has a polyethylene seal. The two rotary handles, which allow two-handed and safe handling, are made of POM-C and have a maximum clamping force of 1,000 to 1,500 Nm.
The inspection opening RRD 18 is designed for a temperature range from -70°C to +70°C, the cut-out of the RRD 18 is 180 x 80 mm and the standard pipe diameter is NW 71. The installation height is approx. 36 mm and the maximum pressure of the RRD 18 is ± 2,500 Pa.
| Teilegruppe | 160202 |
|---|---|
| Material | Aluminium |
