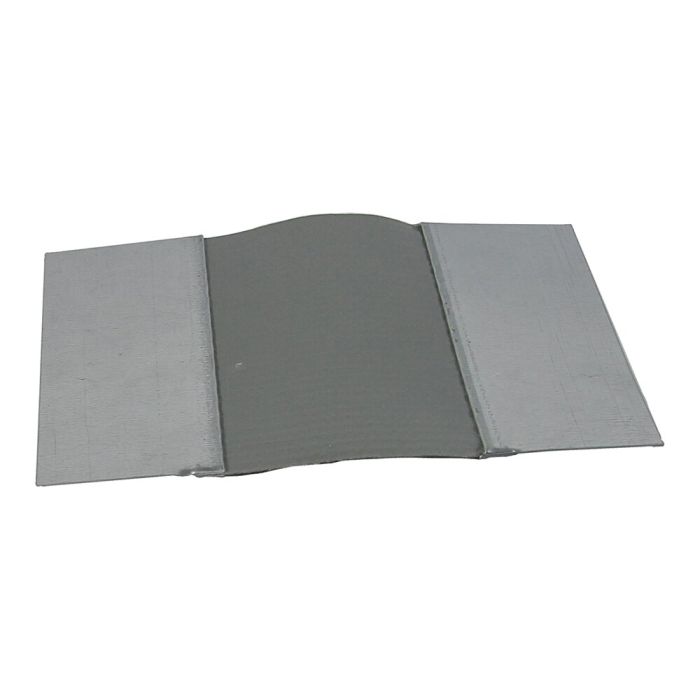

EKA-BAND - 45/75/45 - PVC
Flexible duct connector, PVC/Polyester, grey
Article number
520/45075
EKA-BAND - 45/75/45 - PVC is available to buy in increments of 25
PVC-coated polyester fabric
Coated on one side, airtight
Stretched width: 165 mm
The EKA tape 45/75/45 - PVC is used to isolate vibrations caused by ventilation devices, fans or other devices when connected to air ducts. When connecting between the outlet of these devices and the air duct, it is strongly recommended to install a flexible connection.
For this purpose, an airtight and flexible fabric with good weathering properties should be chosen, which also withstands the temperatures inside and outside the duct.
Coated on one side, airtight
Stretched width: 165 mm
The EKA tape 45/75/45 - PVC is used to isolate vibrations caused by ventilation devices, fans or other devices when connected to air ducts. When connecting between the outlet of these devices and the air duct, it is strongly recommended to install a flexible connection.
For this purpose, an airtight and flexible fabric with good weathering properties should be chosen, which also withstands the temperatures inside and outside the duct.
| Part group | 120301 |
|---|---|
| border | steel |
| Packaging unit | 25 m |
| backing fabric | PES |
| coating | PVC |
| Sheet metal (2x) | 45 mm |
| fabric | 75 mm |
| extended width | 165 mm |
