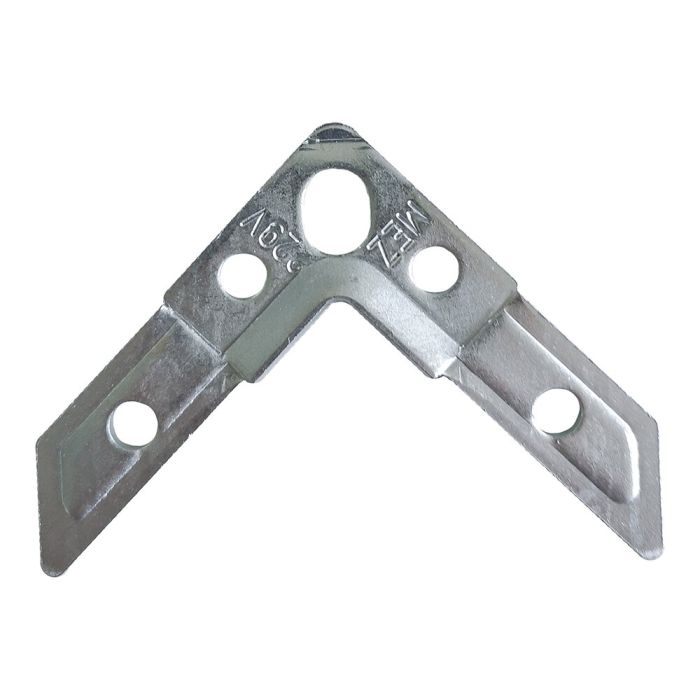

MEZ CORNER 20 Slotted M10 Press-fit galv. – Sturdy and a perfect fit for the System 20

The MEZ CORNER 20 slotted hole M10 pressed galv. is a robust connector for air duct profiles in the SYPHON FLANGE System 20 and has been developed for robust, reproducible corner joints in rectangular air duct construction.

The pressed design ensures additional stability, whilst the slotted hole allows for flexible alignment during installation.

In day-to-day production, precise corner joints are crucial. Dimensional tolerances or misalignments quickly lead to time losses. This component supports exact alignment whilst ensuring a force-fit connection that can be reliably integrated into the manufacturing process.

Technical highlights

• Press-fit design for high dimensional stability
• Slotted hole (9 x 12 mm) for adjustment with M10 screw connection
• 20 mm clearance for system-compatible integration into System 20
• Designed for stable corner joints in duct construction
• Through-hole mounting for clean finishing in the duct wall

Key features

• High stability thanks to pressed construction
• Flexible alignment during installation
• Reduced rework
• System-compatible with MEZ SYPHON FLANGE System 20
• Durable thanks to galv. surface

Additional features

• Through-wall corner with defined Sealing
• Reliable Sealing at the end face and inner edge
• Installation-friendly finish
• Suitable for prefabrication and on-site assembly

Installation

• Simple push-through installation through the sewer wall
• Sealing at the end face and inner edge of the corner
• Flexible adjustment via the slotted hole
• Quick bolting with M10 components
• Stable fit without time-consuming reworking

Why is this corner suitable for you

The MEZ CORNER 20 slotted M10 press-fit galv. is the right choice when high stability and flexible installation are required in System 20. It supports efficient manufacturing processes and delivers reliable connection results in ventilation and plant engineering.

Application scenarios

• Production of air ducts in System 20
• Frame construction for rectangular air ducts
• Ventilation and air conditioning system construction
• Industrial and plant engineering
• Maintenance and modification of existing air duct systems

All information is provided without warranty. Technical specifications, illustrations and prices are subject to change and are not binding. Errors excepted.
