MEZ-CORNER 20 - 73

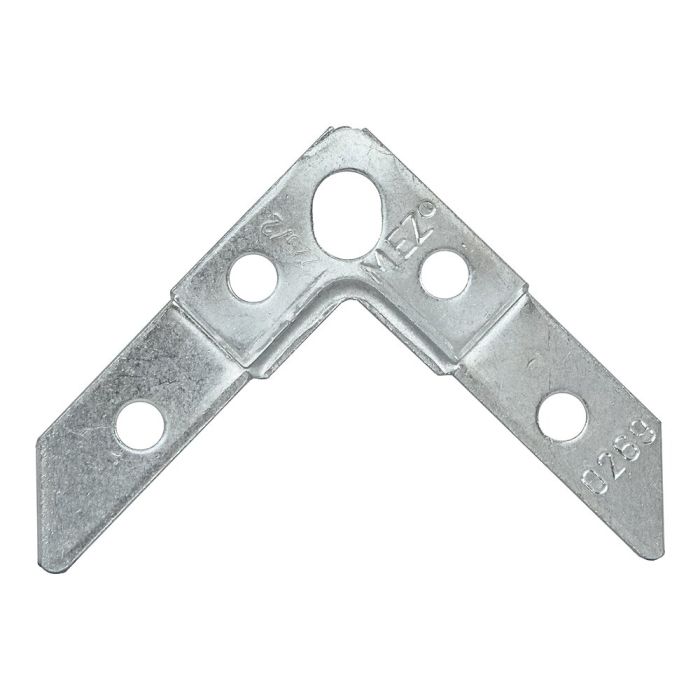

Precise alignment and a tight seal – MEZ-CORNER 20 – Slotted – galv.
The MEZ-CORNER 20 – Slotted – galv. is a functional air duct profile connector for the SYPHON-FLANGE System 20, specifically designed to provide a flexible, precise-fit corner joint in air duct construction. The corner with a slotted hole allows for precise adjustment during installation whilst ensuring a tight seal at the end face and inner edge.
In practice, slight dimensional deviations often occur in ductwork construction, which make rigid connections difficult. This is precisely where the slotted corner offers a clear advantage: it allows for controlled alignment of the components and significantly reduces installation problems and rework.
Technical highlights
- Slotted design allows for precise adjustment during installation
- Material thickness of 3.0 mm for stable and robust connections
- Side length of 73 mm for standard applications in System 20
- Screw hole 9 x 12 mm for flexible connection
- Offset dimension of 30 mm for a precise fit
- Through-hole assembly with sealing at the end face and inner flange
Key features
- Compensation for tolerances during assembly
- Supports a tight and clean corner joint
- Reduces rework and assembly effort
- Ideal for standardised production processes
- Durable thanks to galv. surface
Additional features
- System-compatible solution for flexible applications
- Fewer readjustments thanks to a better fit
- Reliable airflow due to reduced leakage points
Installation
- Simple push-through installation through the duct wall
- Flexible alignment possible thanks to the slotted hole
- Quick screw connection and secure hold
- Suitable for workshop and on-site installation
Why is this corner suitable for you
The MEZ-CORNER 20 – Slotted – galv. is the ideal solution when a certain degree of flexibility is required in air duct production whilst maintaining high connection quality. It supports efficient installation processes and ensures stable, airtight results in the System 20.
Application scenarios
- Production of air ducts with dimensional tolerances
- Frame construction in the SYPHON-FLANGE System 20
- Ventilation and air conditioning system construction
- Industrial and plant engineering
- Maintenance and modification of existing air ducts
All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are non-binding. Errors excepted.
| Part group | 110101 |
|---|---|
| Material | Galvanized steel |
| Screw hole | 9 x 12 mm |
| Clearance | 30 mm |
| Versioin | With an oblong hole |
| Pallet | 27.000 St. |
| Packaging unit | 500 St. |
