MEZ-CORNER 20 - 62,5

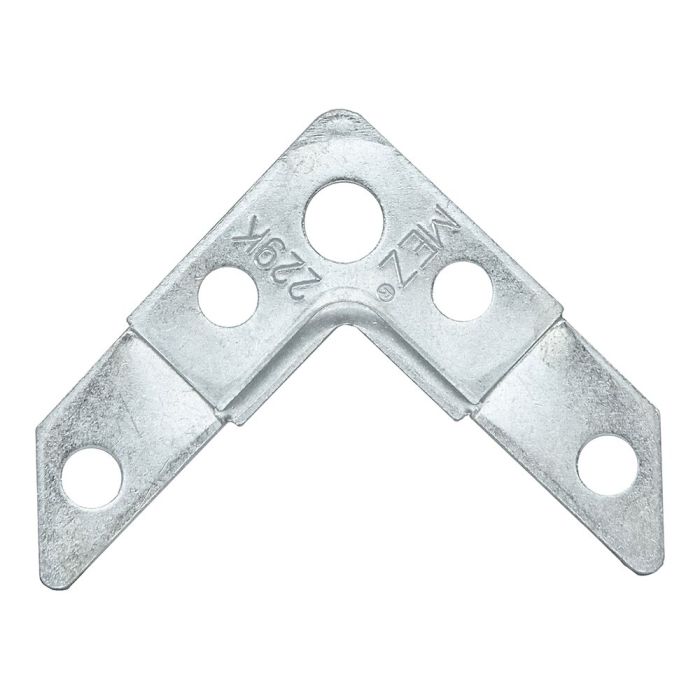

Compact corner connector for System 20 – MEZ-CORNER 20 short, round hole – galv.
The MEZ-CORNER 20 – short, round hole – galv. is a space-saving corner for the SYPHON-FLANGE System 20 and has been specially developed for applications where compact dimensions are required. As a reliable air duct profile connector, it enables a neat and stable corner connection whilst reducing space requirements.
In the production of air duct systems in particular, confined installation spaces or smaller duct cross-sections often present a challenge. Standard corner brackets quickly reach their limits here. The short-leg design of this corner ensures that precise and reproducible connections can be achieved even in confined spaces – without compromising on stability or fit.
Technical Highlights
- Compact side length of 62 mm for space-critical applications
- Material thickness of 3.0 mm for stable and dimensionally stable connections
- Round hole (9 mm) for quick and easy screw fastening
- Offset dimension of 30 mm suitable for System 20
- Through-hole mounting for clean integration into the duct wall
Key features
- Ideal for confined installation spaces
- Clean, repeatable corner joints
- Reduced installation effort
- Suitable for standardised System 20 solutions
- Durable thanks to galv. surface
Additional features
- Complements the system range for various installation scenarios
- Less adjustment required in confined spaces
- Supports stable and reliable airflow
Installation
- Simple push-through installation through the duct wall
- Quick screw connection without complex adjustments
- Ideal for compact installation situations
- Clean fit with minimal space requirements
Why is this corner bracket suitable for you
The MEZ-CORNER 20 – short for round hole – galv. is the practical solution for all applications where standard corners are too large. It enables a secure, clean connection even in confined spaces and integrates seamlessly into your System 20 production.
Application scenarios
- Air ducts with limited space
- Compact frame constructions in System 20
- Ventilation and air conditioning systems
- Industrial and plant engineering
- Maintenance and retrofitting in existing systems
All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are non-binding. Errors excepted.
| Part group | 110101 |
|---|---|
| Material | Galvanized steel |
| Screw hole | 9 mm |
| Clearance | 30 mm |
| Versioin | With round hole |
| Pallet | 22.500 St. |
| Packaging unit | 750 St. |
