MEZ-CORNER 20 - 95

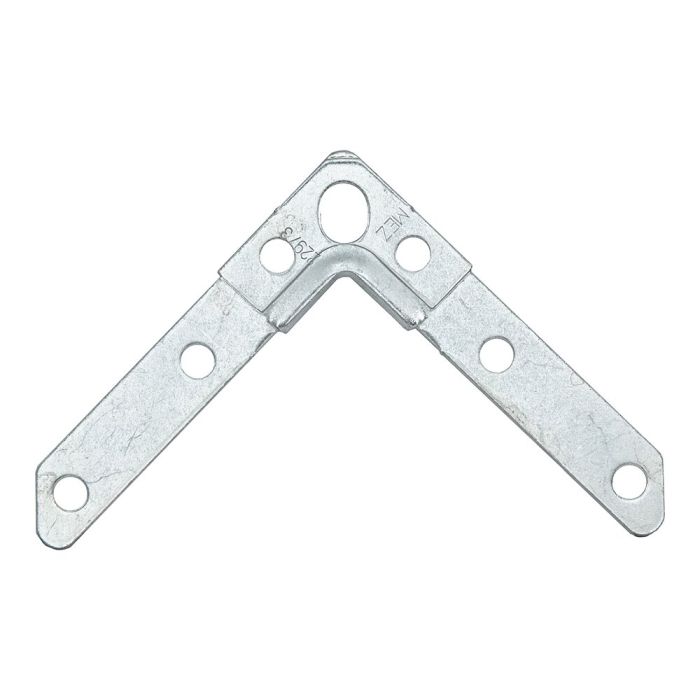

Flexible and sturdy corner joint for System 20 – MEZ-CORNER 20 long, slotted – galv.
The MEZ-CORNER 20 – long, slotted – galv. combines the advantages of a long-leg design with additional flexibility provided by the slotted hole. As a robust air duct profile connector for the SYPHON-FLANGE System 20, this corner enables a stable yet adjustable corner joint in air duct fabrication.
In practice, dimensional tolerances or minimal misalignments often lead to installation problems and rework. The integrated slotted hole allows components to be precisely aligned, whilst the push-fit assembly and defined sealing principle ensure a reliable seal at the end face and inner edge.
Technical highlights
- Long-leg design (95 mm) for increased stability in frame construction
- Slotted hole (9 x 12 mm) allows flexible alignment during assembly
- Material thickness of 3.0 mm for robust and dimensionally stable connections
- Offset dimension of 30 mm for precise integration into System 20
- Through-hole assembly with defined Sealing at the end face and inner edge
Key features
- Compensation for manufacturing and installation tolerances
- Stable corner joints even with larger duct dimensions
- Reduced installation effort and less rework
- Reproducible results in series production
- Galv. surface for long-lasting use
Additional features
- Flexible system component for various installation scenarios
- Less readjustment thanks to improved fit
- Supports a tight and reliable airflow
Installation
- Simple push-through through the duct wall
- Adjustable positioning via slotted hole
- Quick screw connection with secure hold
- Suitable for workshop and on-site installation
Why is this corner bracket right for you
The MEZ-CORNER 20 – long, slotted – galv. is the ideal choice when stability and flexibility are equally required. It facilitates efficient installation, compensates for tolerances and delivers consistently reliable corner joints in air duct construction.
Application scenarios
- Production of air ducts with wider tolerances
- Frame construction in the SYPHON-FLANGE System 20
- Ventilation and air conditioning system construction
- Industrial and plant engineering
- Maintenance and modification of existing duct systems
All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are non-binding. Errors excepted.
| Part group | 110101 |
|---|---|
| Material | Galvanized steel |
| Screw hole | 9 x 12 mm |
| Clearance | 30 mm |
| Versioin | With long legs and a long hole |
| Pallet | 15.000 St. |
| Packaging unit | 500 St. |
