MEZ-CORNER 20 - 73

Sturdy and adjustable corner joint – MEZ-CORNER 20 long, slotted, crimped – galv.

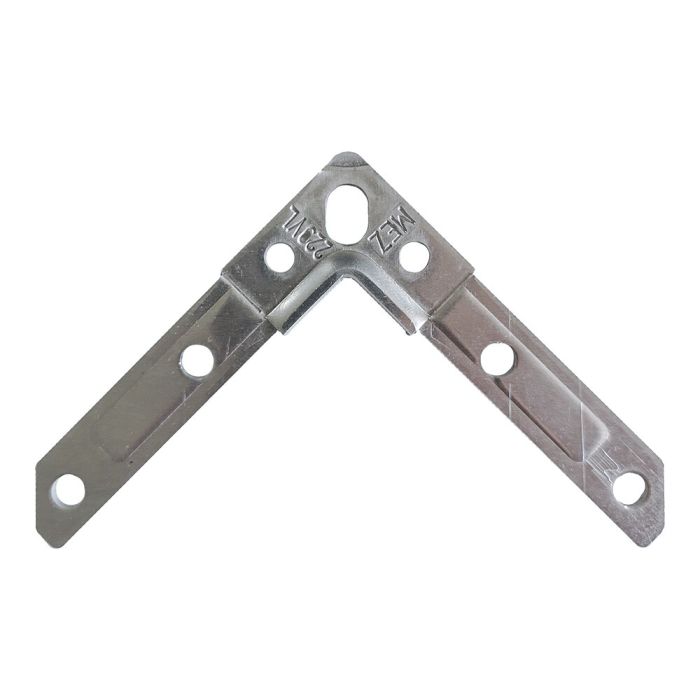

The MEZ-CORNER 20 – long, slotted, press-fit – galv. is a robust air duct profile connector for the SYPHON-FLANGE System 20, combining high stability with easy-to-install adjustability. The corner is press-fitted, offering a particularly dimensionally stable solution for the secure framing of air ducts.

In the manufacture of air duct systems, repeatable connections and reliable alignment are often crucial. At the same time, dimensional tolerances can complicate installation. Thanks to the combination of a long-leg design and a slotted hole, this corner enables a stable connection whilst allowing for controlled adjustment during installation – without any additional effort.

Technical highlights

• Long leg design (95 mm) for stable corner areas in larger duct frames
• Press-fit design for increased dimensional stability and consistent quality
• Slotted hole (9 x 12 mm) allows for precise adjustment during installation
• Material thickness of 3.0 mm for robust connections in continuous use
• Offset dimension of 30 mm for precise integration into System 20
• Through-mounting with sealing at the end face and inner flange

Key features

• High stability thanks to pressed construction
• Flexible alignment despite a fixed connection
• Reduced installation times due to less rework
• Reproducible results in series production
• Durable thanks to galv. surface

Additional features

• Quality-assured system component for stable processes
• Less rework thanks to a precise-fit connection
• Supports a permanently airtight air flow

Installation

• Simple push-through through the duct wall
• Flexible adjustment via the slotted hole
• Quick screw connection and secure fit
• Suitable for factory production and on-site assembly

Why is this corner bracket right for you

The MEZ-CORNER 20 – long, slotted, crimped – galv. is the ideal solution for anyone requiring a robust yet adaptable corner joint in air duct construction. It ensures stable frames, reduces tolerance issues and supports efficient assembly processes in System 20.

Application scenarios

• Air duct production in System 20
• Frame construction for larger duct cross-sections
• Ventilation and air conditioning system construction
• Industrial and plant engineering
• Maintenance and retrofitting of existing systems

All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are non-binding. Errors excepted.
