MEZ-CORNER 20 - 73

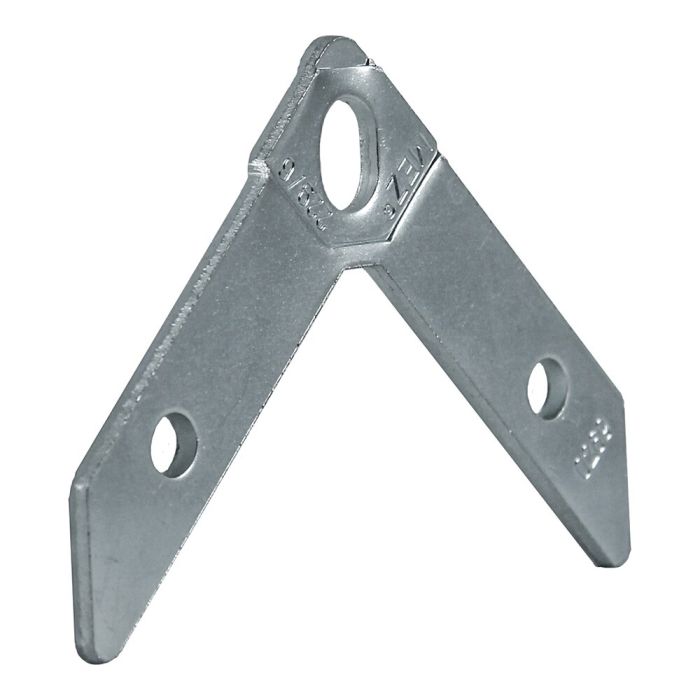

Adjustable corner connector for precise System 20 applications – MEZ-CORNER 20 – Slotted – galv.
The MEZ-CORNER 20 – Slotted – galv. is a precisely fitting air duct profile connector for the SYPHON-FLANGE System 20 and is ideal for the cost-effective manufacture of air ducts. Thanks to its slotted design, the corner allows for flexible alignment during installation whilst ensuring secure sealing at the duct end face and on the inner flange.
In day-to-day production, dimensional tolerances frequently occur, making precise alignment difficult. Rigid connections often lead to stress or rework. This slotted corner specifically addresses this issue by allowing controlled readjustment, thereby maintaining consistent production quality.
Technical highlights
- Slotted design allows for flexible adjustment during installation
- Material thickness of 3.0 mm ensures stable and robust connections
- Side length of 73 mm for use in standard applications
- 9 x 12 mm screw hole for variable screw fastening
- 10 mm clearance for specific system requirements
- Through-hole assembly with defined Sealing at the end face and inner flange
Key features
- Compensation for dimensional tolerances during assembly
- Clean and reproducible corner joints
- Reduction in rework during production
- High fitting accuracy in the System 20
- Durable thanks to galv. finish
Additional features
- Versatile component for various production scenarios
- Less readjustment required due to a more precise fit
- Ensures a permanently airtight seal
Installation
- Easy push-through installation through the duct wall
- Flexible alignment possible via the slotted hole
- Quick screw-fastening with a secure hold
- Suitable for workshop and on-site assembly
Why is this corner bracket right for you
The MEZ-CORNER 20 – Slotted – galv. is the right choice for applications where both stability and assembly flexibility are required. It ensures precise results, reduces assembly effort and integrates seamlessly into existing System 20 production processes.
Application scenarios
- Air duct production with dimensional tolerances
- Frame construction in the SYPHON-FLANGE System 20
- Ventilation and air conditioning system construction
- Industrial and plant engineering
- Maintenance and modification of existing air ducts
All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are non-binding. Errors excepted.
| Part group | 110101 |
|---|---|
| Material | Galvanized steel |
| Screw hole | 9 x 12 mm |
| Clearance | 10 mm |
| Versioin | With a short pull-out dimension and a long hole |
| Pallet | 27.000 St. |
| Packaging unit | 500 St. |
