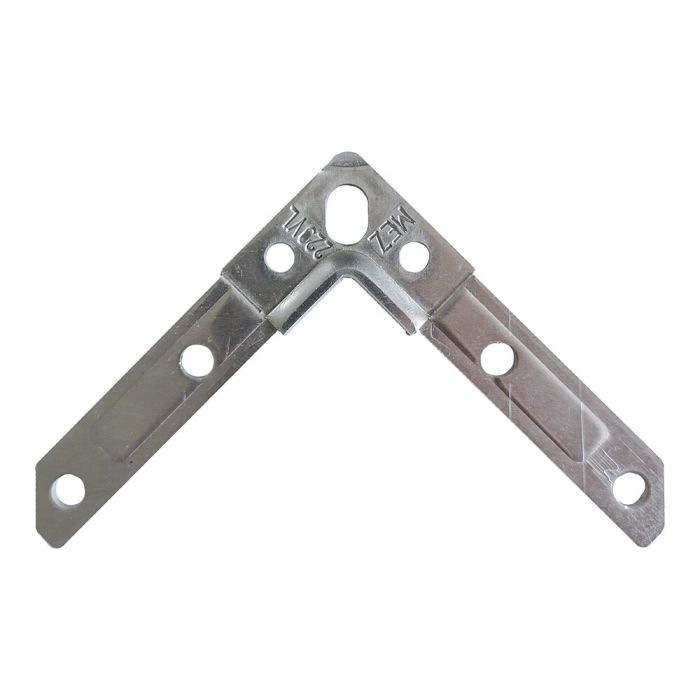

MEZ-CORNER 20 - 95 - AISI 316

Corrosion-resistant and sturdy corner joint – MEZ-CORNER 20 long, slotted, crimped – AISI 316

The MEZ-CORNER 20 – long, slotted, crimped – AISI 316 is a high-quality stainless steel corner for the SYPHON-FLANGE System 20 and has been developed for use in demanding environments. As a durable air duct profile connector, it combines high stability thanks to its crimped design with flexible adjustability thanks to the slotted hole.

In practice, durable connections are crucial, particularly in damp or corrosive environments. At the same time, manufacturing tolerances can complicate installation. This AISI 316 version enables a stable, corrosion-resistant corner connection and facilitates precise alignment without additional effort.

Technical highlights

• Long-leg design for stable frame constructions, even with larger ducts
• Press-fit design ensures consistent dimensional stability
• Slotted hole allows for flexible alignment during assembly
• AISI 316 stainless steel for high resistance to corrosion and aggressive environments
• Through-hole assembly with defined Sealing at the end face and inner edge

Key features

• High corrosion resistance for demanding applications
• Stable and durable corner joints
• Flexibility during alignment reduces installation effort
• Less rework thanks to a precise fit
• Suitable for durable and reliable system solutions

Additional features

• Stainless steel variant for specialised applications and clear system standards
• Reduced replacement needs due to durable material
• Supports a permanently airtight air flow even under difficult conditions

Installation

• Simple push-through installation through the duct wall
• Adjustability via the slotted hole facilitates precise positioning
• Quick screw connection with a secure fit
• Suitable for factory production and on-site assembly

Why is this corner right for you

The MEZ-CORNER 20 – long, slotted hole, crimped – AISI 316 is the right choice for durable and corrosion-resistant corner joints in air duct construction. It offers a reliable combination of stability, flexibility and durability – ideal for demanding production and operating conditions.

Application scenarios

• Air duct construction in corrosive or damp environments
• Hygienically sensitive areas (e.g. food or pharmaceutical industry)
• Plant engineering with increased material requirements
• Production of air duct systems in System 20
• Maintenance and retrofitting of durable systems
