MEZ-CORNER 20 - 95

Robust corner joint for System 20 with precise push-fit assembly

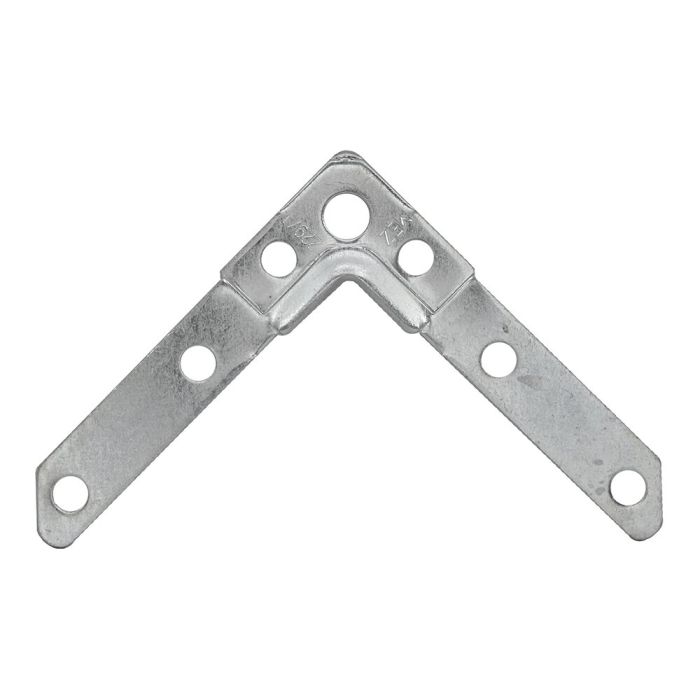

The MEZ-CORNER 20 – long, round hole – galv. is a practical corner piece for the SYPHON-FLANGE System 20. When manufacturing air ducts, this component securely connects the profiles to one another.

The long legs ensure a stable and precise connection at the corners. This is particularly helpful for ducts with large dimensions. The round hole allows for quick and easy installation. This component strengthens the entire structure of the air duct.

Typical challenges in production include imprecise corner joints or leaks in the frame structure. The corner ensures a permanently secure connection. It utilises a simple installation method directly through the component. The bracket reliably performs sealing on the front and the interior. This reduces the number of leaks.

Technical Highlights

• Long-leg design for stable corner areas in larger duct frames
• Material thickness of 3.0 mm for solid and dimensionally stable connections
• Round hole (9 mm) for quick and easy screw assembly
• Compatible with the SYPHON-FLANGE System 20
• Through-hole assembly for clean integration into the duct wall
• Sealing takes place at the front face and inner edge

Key features

• Clean, reproducible corner joints
• Supports airtight frame constructions
• Reduces rework during production and assembly
• Suitable for standardised production processes
• Galv. surface for long-lasting use

Additional features

• Matching system component for consistent material standards
• Less readjustment required thanks to stable connection design
• Supports a permanently airtight seal

Installation

• Easy installation by inserting through the duct wall
• Quick screw-fastening via the round hole
• Clean fit without time-consuming reworking
• Suitable for workshop and on-site assembly

Why is this corner suitable for you?

The MEZ-CORNER 20 – long, round hole – galv. is a practical solution for creating stable and airtight corner joints in air duct construction. It integrates seamlessly into existing System 20 processes and ensures reliable results in production.

Application scenarios

• Production of air ducts in System 20
• Framework construction in ventilation technology
• Building services engineering
• Industrial and plant engineering
• Maintenance and servicing of ventilation systems
