MEZ-CORNER 20 - 95

Adjustable and easy-to-install corner connector – MEZ-CORNER 20 long, slotted, hook – galv.

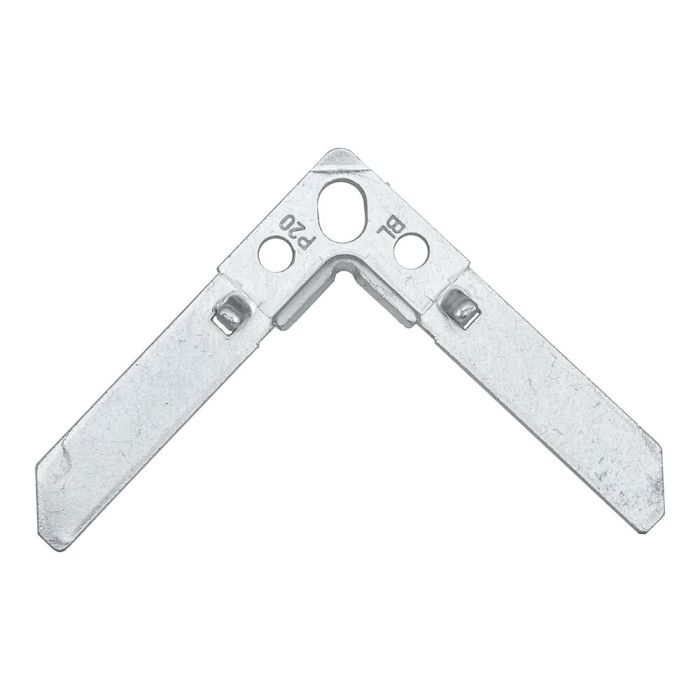

The MEZ-CORNER 20 – long, slotted hole, hook – galv. is a versatile air duct profile connector for the SYPHON-FLANGE System 20 and has been specially developed for efficient, secure corner joints in air duct fabrication. The combination of a slotted hole and an integrated notching groove (hook) enables more precise positioning whilst simplifying installation. The corner is inserted through the duct wall and seals reliably at the end face and inner flange.

Precise alignment and secure fixing are crucial, particularly when working with air ducts. Without suitable connecting elements, misalignments or unnecessary installation effort can quickly arise. This design facilitates clean alignment and noticeably simplifies handling during the production and installation process.

Technical highlights

• Long-leg design (95 mm) for stable corner joints
• Slotted hole (9 x 12 mm) for flexible alignment and precise fitting
• Notch (hook) for better fixation during installation
• Material thickness of 3.0 mm for dimensionally stable and resilient joints
• Offset dimension of 30 mm for secure integration into System 20
• Through-mounting with sealing at the end face and inner edge

Key features

• Simplified installation thanks to additional fixing options
• Flexible adjustment when aligning components
• Stable corner joints even with larger duct formats
• Reduced time required for production and installation
• Durable and corrosion-protected through galvanisation

Additional features

• Functional system component for efficient production processes
• Tight-fitting connections reduce rework
• Supports a permanently airtight air flow

Installation

• Simple push-through through the duct wall
• Pre-fixing via a drive-in notch facilitates alignment
• Flexible adjustment thanks to the slotted hole
• Quick and secure screw connection

Why is this corner suitable for you

The MEZ-CORNER 20 – long, slotted, hook – galv. is ideal when stability is required alongside simple and controlled installation. Particularly in series production, it ensures more efficient processes, less rework and precise connection results.

Application scenarios

• Air duct production in System 20
• Frame construction with enhanced installation convenience
• Ventilation and air conditioning system construction
• Industrial and plant engineering
• Maintenance and modification of existing air ducts

All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are non-binding. Errors excepted.
