MEZ-SYPHON-FLANGE 20 - galv.

MEZ-SYPHON-FLANGE 20 – galv.: Maximum airtightness and stability for precise air duct connections


In the manufacture and installation of air ducts, absolute dimensional accuracy, high airtightness and cost-effective processing are among the key requirements. Particularly with large-format ducts or higher tightness classes, inaccurate profiles, unstable flange frames or time-consuming rework quickly lead to time losses, complaints and unnecessary costs.

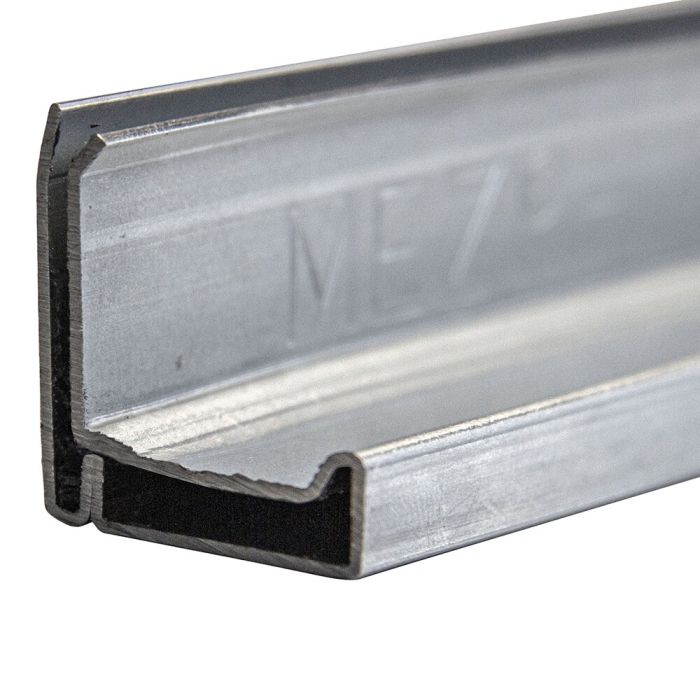

The MEZ-SYPHON-FLANGE 20 – galv. with Butyl-Mastic injection was developed specifically to meet these requirements. As an air duct profile made of galvanized steel, it combines high dimensional stability with an integrated siphon geometry for consistently high airtightness. The chamfered bevel facilitates the insertion of the duct wall, whilst the 45° support leg specifically stiffens the flange frame. The slightly chamfered inner leg acts as a sealing lip and presses reliably against the duct wall. This is a clear advantage over standard profiles commonly available on the market that lack a siphon effect. The MEZ-Butyl-Mastic is positioned within the MEZ-SYPHON-FLANGE. This allows production with this air ventilation system in accordance with the requirements of tightness classes C & D as per DIN EN 1507.

Manufacture from high-quality galvanized steel ensures consistent profile quality, high corrosion resistance and reproducible results in series production. This level of quality is also required for precision-formed cold-rolled system profiles in industrial profile construction.

Technical Highlights

• Galvanized steel air duct profile (material thickness approx. 0.70 mm)
• Integrated siphon geometry structurally reduces leakage
• With injected Butyl-Mastic sealant for integrated sealing
• Meets high airtightness requirements up to Class D (DIN EN 1507 / EN 16798-3)
• Beveled edge as a threading aid for duct sheets
• Sturdy support flange for high dimensional and torsional stability


Key features

• Enhanced airtightness without additional sealing measures
• Sturdy flange frame even for large duct cross-sections
• Efficient processing during manufacturing and installation


Additional features

• Reduced overall costs due to fewer complaints and rework
• Predictable quality and consistent delivery specifications
• High compatibility with System 20 components
• Permanently airtight connections
• Lower risk of leakage during operation
• Clean, standard-compliant duct terminations


Installation

• Faster installation thanks to simplified insertion of the duct wall
• High fitting accuracy – even over long distances
• Sturdy air duct profile for torsion-resistant frames


Why is this air duct profile suitable for you?

With the MEZ-SYPHON-FLANGE 20 – galv., you are choosing a technically mature galvanized steel air duct profile. This reduces installation times, reliably meets sealing requirements and offers long-term economic benefits.


Application scenarios

• Manufacture of rectangular air ducts
• Industrial and commercial ventilation
• Building services systems with increased airtightness requirements

All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are non-binding. Errors excepted.
