MEZ-CORNER 20 - 73

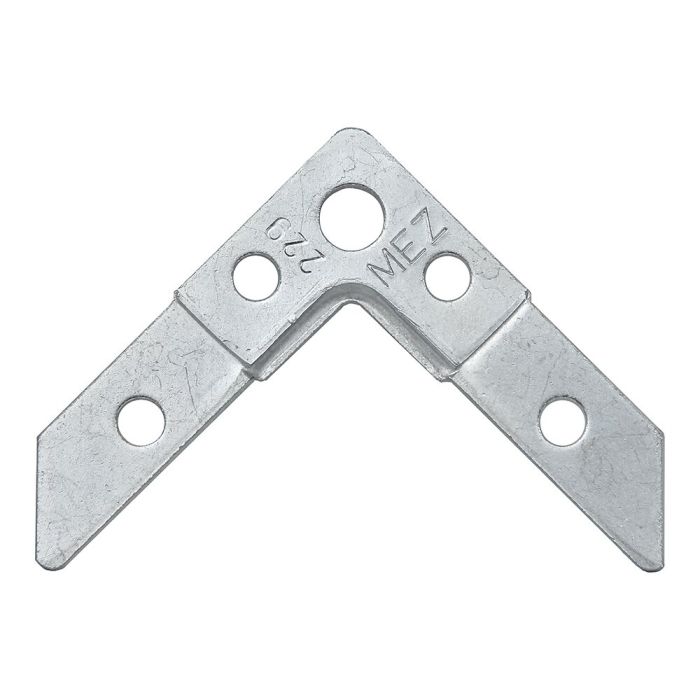

Precision corner joint for System 20 – MEZ-CORNER 20 – Round hole – galv.
The MEZ-CORNER 20 – Round hole – galv. is a tried-and-tested air duct profile connector for the SYPHON-FLANGE System 20, ensuring a clean, airtight corner joint in air duct construction. The corner is specifically designed for push-fit assembly and enables a precisely sealed connection directly at the duct end face and on the inner flange.
In the production of air duct systems, consistently high connection quality is crucial. Inaccurate corner joints or leaks quickly lead to rework and efficiency losses. Thanks to its robust design and clear sealing principle, this corner bracket supports reproducible production and reduces typical sources of error.
Technical Highlights
- Compact side length of 73 mm for standardised applications in System 20
- Material thickness of 3.0 mm for dimensionally stable and resilient connections
- 9 mm round hole enables quick and secure screw fastening
- A 30 mm offset ensures a precise fit within the profile
- Designed for through-wall assembly through the duct wall
- Sealing is specifically applied to the end face and inner flange
Key features
- Consistent, reproducible corner joints
- Supports a sealed frame construction
- Reduces rework in production
- Easy integration into existing System 20 processes
- Durable thanks to galv. finish
Additional features
- System-compatible standard component for efficient procurement
- Fewer readjustments thanks to stable connection
- Supports reliable airflow
Installation
- Simple push-through through the duct wall
- Quick screw connection via the round hole
- Clean fit without time-consuming reworking
- Suitable for workshop and on-site assembly
Why is this corner bracket right for you
The MEZ-CORNER 20 – Round Hole – galv. is a practical solution for creating stable and airtight corner joints in air duct construction. It ensures consistent, repeatable results and integrates seamlessly into standardised production processes.
Application scenarios
- Production of air ducts in System 20
- Framework construction in ventilation technology
- Building services and plant engineering
- Industrial air distribution systems
- Maintenance and repair of air ducts
All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are non-binding. Errors excepted.
| Part group | 110101 |
|---|---|
| Material | Galvanized steel |
| Screw hole | 9 mm |
| Clearance | 30 mm |
| Versioin | With round hole |
| Pallet | 27.000 St. |
| Packaging unit | 500 St. |
If you miss a download, please write us via our contact form.
