MEZ-SYPHON-FLANGE 20 short – VZ

MEZ-SYPHON-FLANGE 20 short – galv.: Maximum airtightness and stability for precise air duct connections

In the manufacture and installation of air ducts, absolute dimensional accuracy, high airtightness and cost-effective processing are among the key requirements. Particularly with large-format ducts or higher tightness classes, inaccurate profiles, unstable flange frames or time-consuming rework quickly lead to time losses, complaints and unnecessary costs.

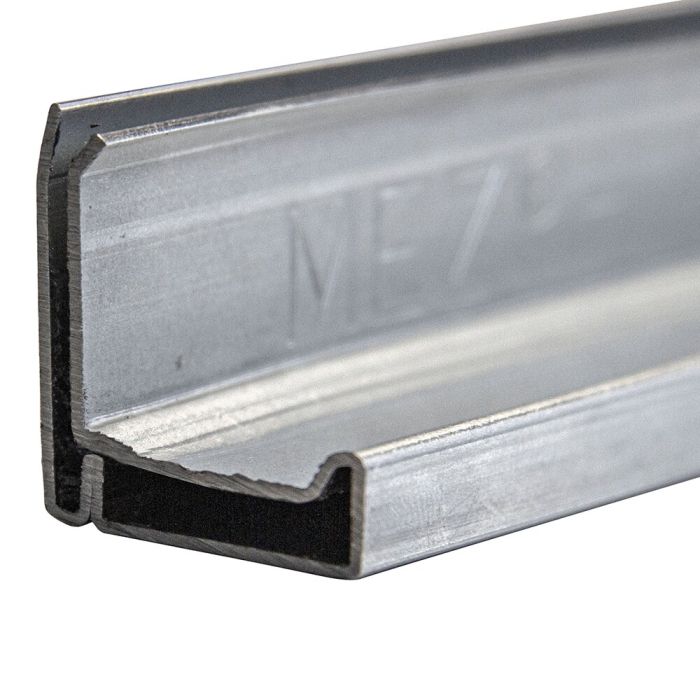

The MEZ-SYPHON-FLANGE 20 – galv. in the short version with Butyl-Mastic injection has been specially developed to meet these requirements. As an air duct profile made of galvanized steel, it combines high dimensional stability with an integrated siphon geometry for consistently high airtightness. The chamfered bevel facilitates insertion of the duct wall, whilst the 45° support leg specifically stiffens the flange frame. The slightly chamfered inner leg acts as a sealing lip and presses reliably against the duct wall. This is a clear advantage over standard profiles commonly available on the market without a siphon effect. Thanks to the placement of the Mez-Butyl-Mastic in the MEZ-SYPHON-FLANGE, this air ventilation system can be manufactured in accordance with the requirements of tightness classes C & D as per DIN EN 1507.

Manufacture from high-quality galvanized steel ensures consistent profile quality, high corrosion resistance and reproducible results in series production – a level of quality also required for precision-formed cold-rolled system profiles in industrial profile construction.

Technical specifications

- System: 20

- Material: Galvanized steel

- Profile thickness: 0.70 mm

- Length: 2,500 mm

- Integrated siphon geometry

- High dimensional and torsional stability

Key features

- Increased airtightness without additional sealing measures

- Stable flange frame for shorter duct cross-sections

- Efficient processing during manufacture and installation

Additional features

- Elimination of the effort involved in cutting air duct profiles

- Reduced overall costs due to fewer complaints and rework

- Predictable quality and consistent delivery specifications

- High compatibility with System 20 components

- Permanently airtight connections

- Lower risk of leakage during operation

- Clean, standard-compliant duct terminations

Installation

- Faster installation thanks to simplified insertion of the duct wall

- High fitting accuracy due to the shortened version

- Stable air duct profile for torsion-resistant frames

Why is this air duct profile suitable for you?

With the MEZ-SYPHON-FLANGE 20 short – galv., you are choosing a technically mature galvanized steel air duct profile that reduces installation times, reliably meets tightness requirements and offers long-term economic benefits.

Application scenarios

- Manufacture of rectangular air ducts

- Industrial and commercial ventilation

- Building services systems with increased airtightness requirements

All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are non-binding. Errors excepted.
