MEZ-AIRVANE
MEZ-AIRVANE – Bracing for Stable Air Deflector Edges

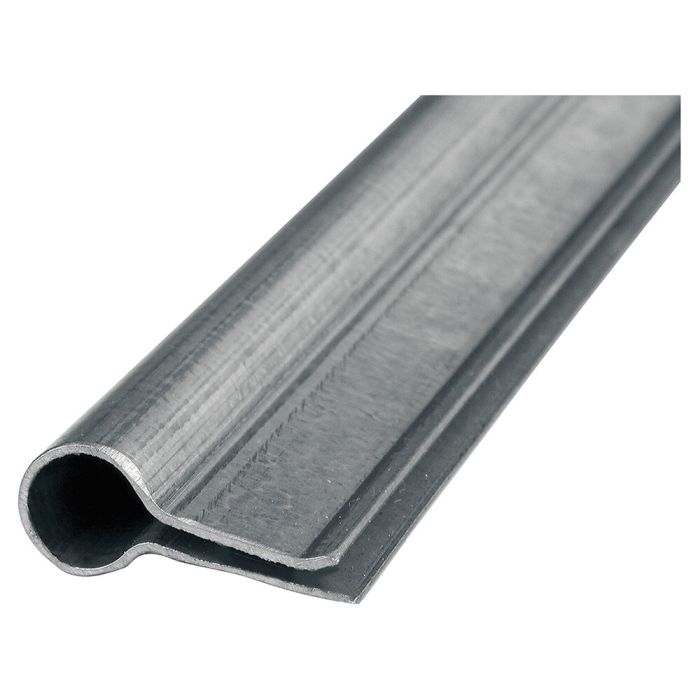

The MEZ-AIRVANE is a compact securing and stiffening profile for airfoils, specifically designed to stabilize air distribution systems. Thanks to its galvanized steel construction and optimized geometry, this variant is particularly suitable for applications where limited installation space and precise edge guidance are critical.
In practice, insufficiently stiffened airfoils often lead to vibrations, noise generation, and long-term material wear. The MEZ-AIRVANE 160 solves this problem through a simple yet effective structural reinforcement.
Technical Highlights
- Retaining and stiffening profile for airfoils
- Material: Galv. steel
- Diameter: Ø 11 mm
- Length: 5 m
- Dimensions: A: 33 mm / B: 20 mm / C: 13 mm / D: 11 mm / S: 1.00 mm
- Packaging unit: 500 m
- Fastening via spot welding or embossing
Key Features
- Effective reduction of oscillations and vibrations
- Stabilization of baffle plate edges even with narrower geometries
- Extended service life of air duct components
- Space-saving design for compact constructions
- Cost-effective solution thanks to galv. steel construction
Additional Features
- Uniform profile dimensions simplify inventory management and reduce the number of variants
- Less vibration means reduced wear and stable operating conditions
Installation
- Easy cutting to the required length
- Precise alignment along the air vane edge
- Flexible fastening via spot welding or embossing
- Efficient integration into manufacturing processes and on-site assembly
Why is this stiffening profile right for you
The MEZ-AIRVANE 160 is the right choice for applications requiring compact and effective intermediate stiffening. It ensures quiet, stable air deflectors and contributes significantly to the quality and longevity of modern air distribution systems.
Application scenarios
- Intermediate stiffening of air deflectors in air ducts
- Stabilization of narrow air deflector edges
- Series production of air duct systems
- Reduction of vibration problems in existing systems
- Use in commercial and industrial ventilation systems
All information is provided without warranty. Technical data, illustrations, and prices are subject to change and are non-binding. Errors excepted.
| Part group | 120210 |
|---|---|
| Material | galvanized steel |
| Product dimensions | A: 33 mm / B: 20 mm / C: 13 mm / D: 11 mm / S: 1,00 mm |
| Länge | 5 m |
| Packaging unit | 500 m |
