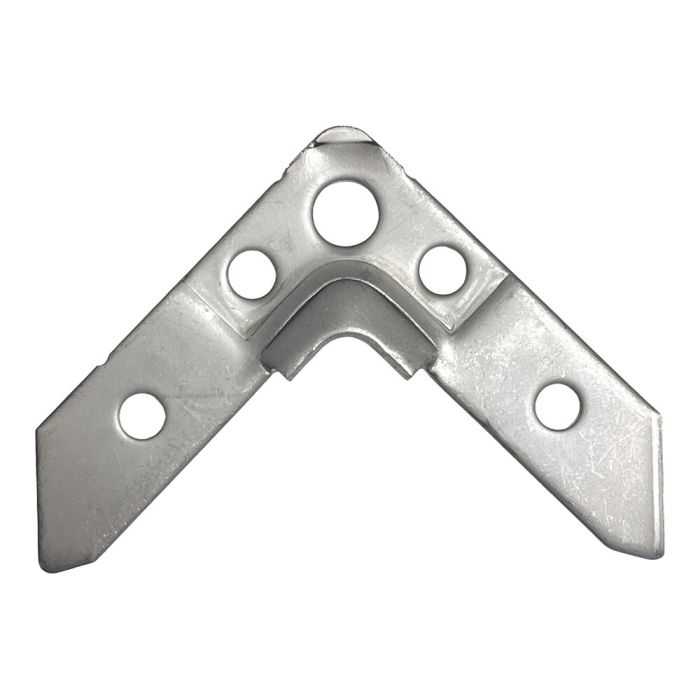

MEZ-CORNER 20 – long, round hole – V2A
Precision Corner Connection for Durable Air Duct Frames
In air duct construction, stable and dimensionally accurate frame corners are essential for the overall quality of the duct system. Inaccurate corner connections lead to misalignment, structural stress within the frame, and increased installation effort.
The MEZ-CORNER SYSTEM 20 - V2A is a corner bracket made of stainless steel V2A for the fabrication of profile frames in rectangular air duct construction. It connects the profile ends with a secure, form-fitting joint and ensures a defined, stable corner configuration. This supports the structural integrity of the frame and provides a clean foundation for flange and duct connections.
Manufactured from stainless steel V2A, the MEZ-CORNER is designed for long-term use in demanding HVAC and building services environments. Its precisely engineered geometry enables efficient processing in prefabrication as well as in on-site project installation.
Top Advantages
- Robust corner connection for rectangular air duct frames
- Stainless steel V2A for high corrosion resistance
- Form-stable construction for load-bearing frames
- Suitable for industrial production and project installation
- Reliable quality for professional applications
Additional Benefits at a Glance
- Reduces misalignment and dimensional deviations in frame construction
- Supports the structural stability of the air duct system
- Cost-effective for serial and project-based applications
- Minimizes rework during frame assembly
- Proven solution in professional ventilation construction
Installation
- Insert and fasten the profiles within the corner connection
- Ensures clean frame formation without structural tension
- Fast processing in workshop and on-site environments
- Consistent results in serial production
Why is this MEZ-CORNER the right choice for you?
The MEZ-CORNER SYSTEM 20 - V2A offers a technically sound and cost-efficient solution for stable frame corners in air duct construction. It supports precise fabrication, reduces installation effort, and forms the foundation for durable duct constructions in professional HVAC applications.
Application Scenarios
- Frame construction for rectangular air ducts
- Manufacturing of air duct segments
- Commercial and industrial HVAC projects
- New construction and modernization of ventilation systems
| Part group | 110201 |
|---|---|
| Material | V2A stainless steel |
| Screw hole | 9 mm |
| Clearance | 30 mm |
| Versioin | With round hole |
| Pallet | 27.000 St. |
| Packaging unit | 500 St. |
