MEZ-CORNER-KLICK 20 - RL

MEZ-CORNER-KLICK 20 - RL | for rolled on Flanges | two-pieces, galv. verz.

Article number

210/020

MEZ-CORNER-KLICK 20 - RL is available to buy in increments of 1

Description

Quick-fit corner joint for moulded profiles in the System 20

In air duct production and installation, profile corners must not only be precise and dimensionally stable, but also quick and easy to assemble consistently. Conventional corner brackets with screws or complex fixing methods increase installation effort, create additional sources of error and slow down efficient manufacturing and installation processes. This applies in particular to moulded profiles in System 20.

The MEZ-CORNER-KLICK 20 – R18 is a two-part corner bracket with a click system, developed specifically for this application. It enables a secure, form-fitting profile corner without screws and forms a reliable basis for dimensionally accurate, durable air duct frames in ventilation and building services engineering.

Key features

Corner bracket for moulded profiles in System 20
Two-piece design with click system
Screwless installation
Form-fitting, stable profile corner
Manufactured from galvanized steel

Additional features at a glance

Significantly reduced installation and labour costs
Reproducible corner joints even in series production
Secure hold without additional fastening materials
Uniform force transmission in the corner area
Minimised risk of misalignment, stress and potential leaks
Galvanized steel for high durability in ventilation system environments

Installation

Installation of the MEZ-CORNER-KLICK 20 – R18 is quick and straightforward, providing a secure connection for the air duct profiles. The screwless click system ensures a form-fit fixation of the profile corner.

How to install:

Tap the moulded part into the moulded profile using a hammer.

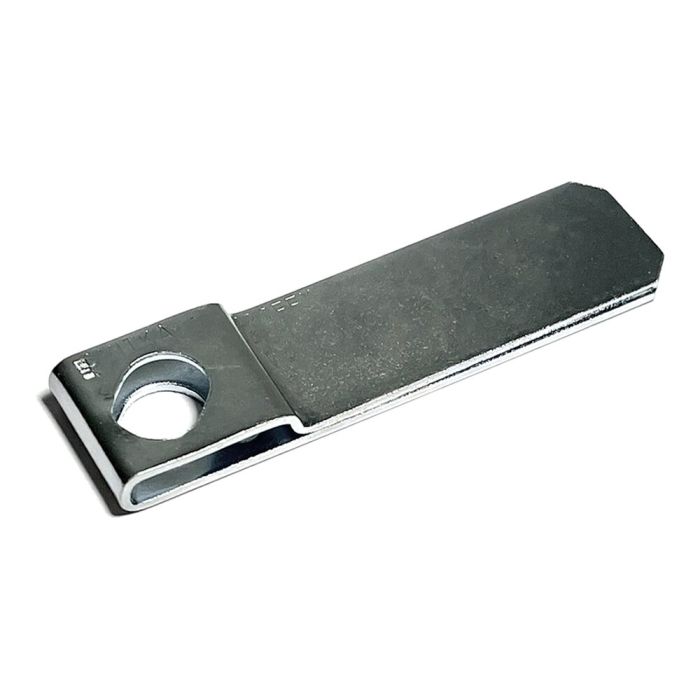

Insert the flat piece into the guide groove of the moulded part and also tap it into the profile with a hammer.
Fold the “tab” of the moulded part over with a hammer until it rests against the flat piece, securely preventing the corner from coming loose.

This installation process results in a permanently stable, true-to-angle profile corner – without screws, without additional fixing materials and without time-consuming readjustment.

Why is this corner right for you?

The MEZ-CORNER-KLICK 20 – R18 is the ideal choice for anyone who prioritises process reliability, simple installation and consistently high quality when it comes to profile corners. The click system shortens installation times and ensures sustainability in reducing sources of error – both in production and on site.
