MEZ-CORNER-KLICK 30 - R27
Quick and secure corner joint for air duct profiles in the System 30
The MEZ-CORNER-KLICK 30 R27 is a two-part corner fitting for air duct profiles in the System 30. It ensures stable corner joints and facilitates quick and reliable installation in air duct construction. You save time during installation whilst ensuring a secure connection between the profiles. This reduces installation effort and improves efficiency in both production and installation.

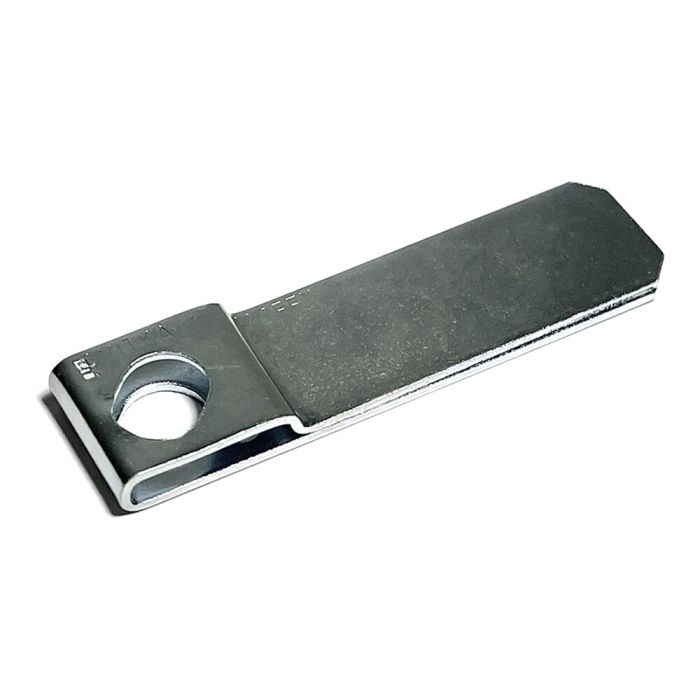

The two-part design consists of a moulded part and a flat part. Both components are perfectly matched to one another and ensure a precise fit within the profile system. The galvanized steel construction provides reliable protection against corrosion and is suitable for professional use in ventilation and plant engineering.
Technical Highlights
- Two-part corner piece from Set 02
- Suitable for System 30 air duct profiles
- Manufactured from galv. steel
- Robust and precise corner joint
- Secured against slipping out thanks to an integrated tab
- Designed for quick installation
Key Features
- Quick and straightforward installation
- High stability of the corner joint
- Secure connection of the air duct profiles
- Precise integration into the profile system
- Corrosion-protected surface
Additional features
- Reduced installation effort
- Suitable for factory production and on-site assembly
- Durable design made from galvanized steel
- Reliable hold of the profile connection
Installation
- Tap the moulded part into the profile with a hammer
- Insert the flat part into the guide groove of the moulded part and tap it into the profile as well
- Fold down the integrated tab on the moulded part until it rests against the flat part
- This securely prevents the corners from slipping out
Why is this MEZ-CORNER-KLICK 30 R27 right for you
The MEZ-CORNER-KLICK 30 R27 is the ideal solution when air duct profiles need to be joined quickly, securely and reliably. The two-part design allows for easy installation whilst ensuring stable corner joints. The integrated locking mechanism prevents the components from slipping out and enhances the operational safety of the structure.
Application scenarios
- Manufacture of air ducts in System 30
- Framework constructions for ventilation ducts
- Ventilation and air-conditioning system installation
- Industrial and plant engineering
- Installation and maintenance of air duct systems
All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are not binding. Errors excepted.
| Part group | 110702 |
|---|---|
| Material | Galvanized steel |
| Type | Two-part |
| Type variant | R27/G27 |
| Packaging unit | 1 St. |
