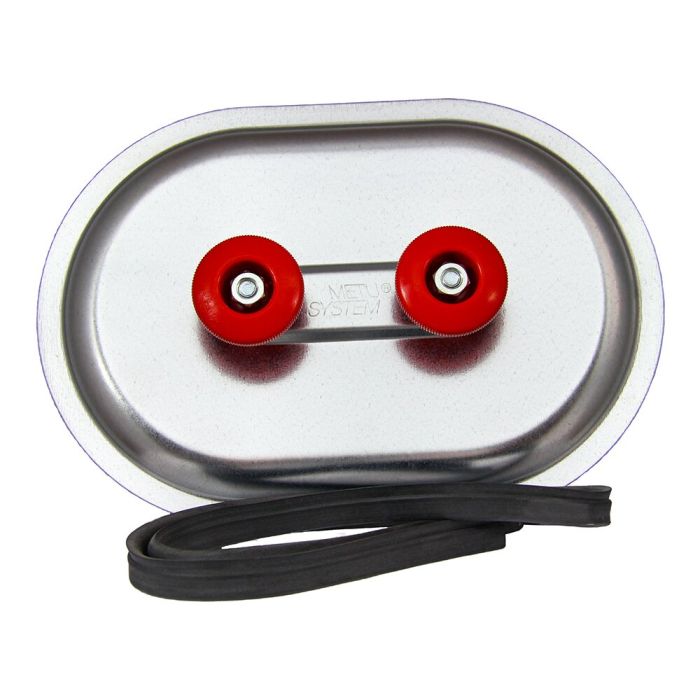

Access door RD 18 - SKK

Compact Galvanized Steel Access Door with Self-Adhesive Edge Protection for Safe Air Duct Inspection

The Revision RD SKK has been specifically designed for rectangular, non-insulated air ducts. It provides fast and safe access to inspection, cleaning and maintenance areas. The key advantage is the integrated self-adhesive edge protection (SKK) made of EPDM. It reliably covers cut edges, reduces the risk of injury and simultaneously contributes to the sealing of the inspection opening.

In daily operations, duct installers, service companies and facility operators are often faced with a common challenge. Inspection openings must remain permanently airtight, safe and easy to maintain. The Galvanized steel access door provides a practical solution. Its robust design with an inner and outer cover securely clamps the duct wall in place. Corrosion-resistant handles ensure convenient opening even after years of operation.

Technical Highlights

• Inspection opening RD 18: 180 × 80 mm
• Manufactured from Galvanized steel
• Self-adhesive EPDM edge protection (SKK)
• Temperature resistance from approx.-70°C to +80°C
• Suitable for rectangular, non-insulated air ducts
• Approved operating pressure up to ±2,500 Pa
• Airtight connecting screws
• Corrosion-resistant POM handles
• Installation height approx. 37 mm
• Suitable for duct wall thicknesses up to 2 mm in the SKK version

Key Benefits

• Protects personnel from sharp cut edges
• Supports long-term reliable sealing
• Fast access for inspection and maintenance
• Robust construction for daily installation and service applications
• Durable components with excellent corrosion resistance
• Reduced maintenance effort thanks to easy-to-operate handles

Further Advantages at a Glance

• Reduces lifecycle costs through a durable, maintenance-friendly design
• Standardized solution for professional air duct construction
• Improves accessibility of air ducts for recurring inspections
• High operational reliability through secure fastening and sealing
• Fast access to air ducts without extensive dismantling
• Convenient opening and closing even after long operating periods
• Safe handling thanks to the protected duct opening

Installation

• Self-adhesive SKK edge protection simplifies installation
• Fast installation in rectangular air ducts
• Low installation height of only approx. 37 mm
• Airtight screws support clean installation
• Suitable for confined installation situations in duct construction

Why Is This Access Door the Right Choice for You?

If you are looking for a compact, durable and field-proven solution for maintenance and inspection openings in rectangular air ducts, the REVISION RD 18 - SKK - GALV. is an economical choice. The access door combines robust galvanized steel construction with self-adhesive edge protection. It also offers user-friendly operation and reliable sealing. Duct manufacturers, HVAC contractors and service companies benefit from a safe and long-lasting inspection solution for professional ventilation and HVAC applications.

Typical Applications

• HVAC systems in commercial and industrial buildings
• HVAC projects in new construction and retrofit applications
• Maintenance openings in rectangular air ducts
• Inspection access points in air ventilation systems
• Service and cleaning work on air ducts
• Duct manufacturing and duct installation
