Access door RD 65 - SKK
Access door RD 65 - SKK | 600x500 mm, galvanized steel | with edge protection
Article number
608K
Access door RD 65 - SKK is available to buy in increments of 1
With self-adhesive edge protection
Edge protection serves as protection against injuries and for sealing
Heat resistant from -70°C to +80°C

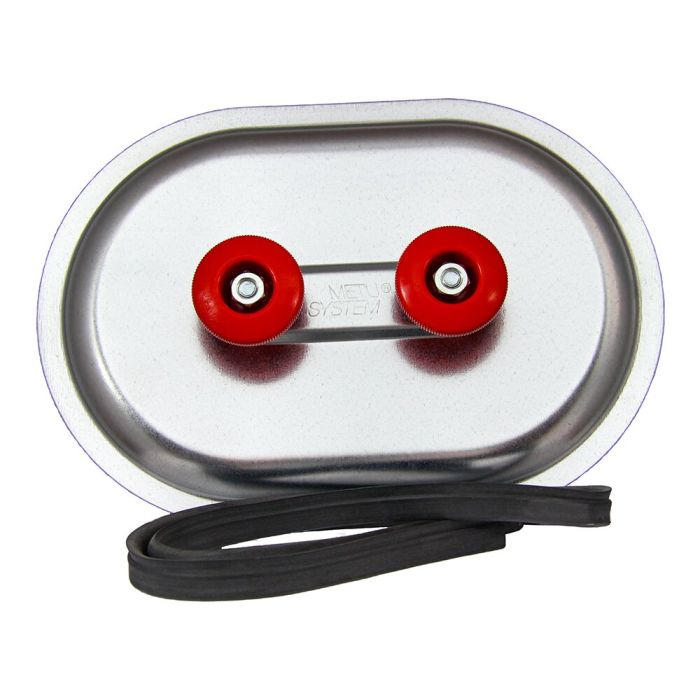

Access door RD 65 SKK is an inspection door for rectangular air duct systems and has a self-adhesive edge protection, which serves both as protection against injury and to seal the inspection opening. The inspection cover RD 65 SKK is made of galvanised steel and has a polyethylene seal. The two rotary handles, which allow two-handed and safe handling, are made of POM-C and have a maximum clamping force of 1,000 to 1,500 Nm.
The inspection opening RD 65 SKK is designed for a temperature range of -70°C to +80°C and the cut-out of the RD 65 SKK is 600 x 500 mm, the installation height is approx. 73 mm and the maximum pressure of the RD 65 is 2,500 Pa.
Edge protection serves as protection against injuries and for sealing
Heat resistant from -70°C to +80°C
Access door RD 65 SKK is an inspection door for rectangular air duct systems and has a self-adhesive edge protection, which serves both as protection against injury and to seal the inspection opening. The inspection cover RD 65 SKK is made of galvanised steel and has a polyethylene seal. The two rotary handles, which allow two-handed and safe handling, are made of POM-C and have a maximum clamping force of 1,000 to 1,500 Nm.
The inspection opening RD 65 SKK is designed for a temperature range of -70°C to +80°C and the cut-out of the RD 65 SKK is 600 x 500 mm, the installation height is approx. 73 mm and the maximum pressure of the RD 65 is 2,500 Pa.
| Teilegruppe | 160103 |
|---|---|
| Material | Stahl verzinkt |
