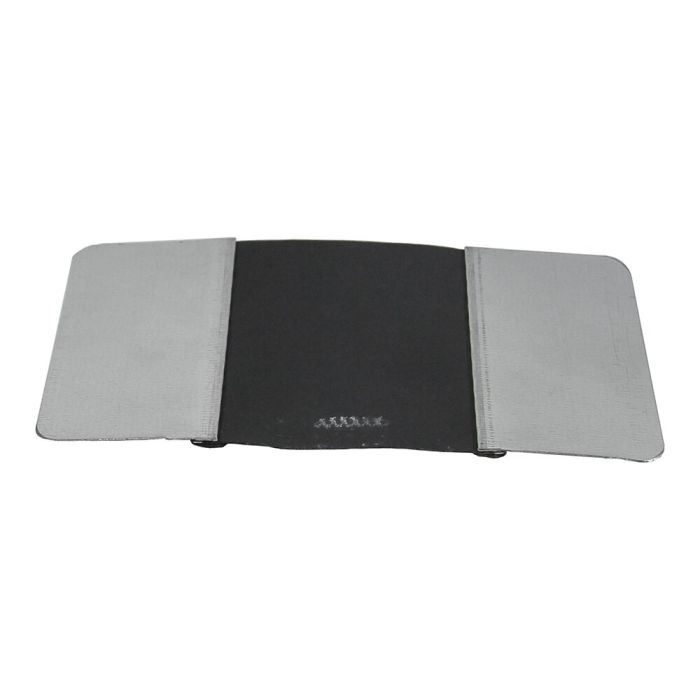

EKA-BAND EX 45/60/45 - PVC
Flexible duct connector
Article number
520EX
EKA-BAND EX 45/60/45 - PVC is available to buy in increments of 25
PVC-coated carrier material
Antistatic, airtight
Stretched width: 150 mm
EKA-Band 45/60/45 - Ex-Antistatic is used to isolate vibrations caused by ventilation units, fans or other devices when connected to air ducts. When connecting the outlet of these devices to the air duct, it is strongly recommended to install a flexible connection.
For this purpose, an airtight and flexible fabric with good weathering properties should be chosen, which also withstands the temperatures inside and outside the duct
Antistatic, airtight
Stretched width: 150 mm
EKA-Band 45/60/45 - Ex-Antistatic is used to isolate vibrations caused by ventilation units, fans or other devices when connected to air ducts. When connecting the outlet of these devices to the air duct, it is strongly recommended to install a flexible connection.
For this purpose, an airtight and flexible fabric with good weathering properties should be chosen, which also withstands the temperatures inside and outside the duct
| Part group | 120304 |
|---|---|
| Border | Steel |
| Packaging unit | 25 m |
| Backing fabric | Polyester fabric |
| Coating | Antistatic PVC |
| Sheet metal (2x) | 45 mm |
| Fabric | 60 mm |
| Extended width | 150 mm |
