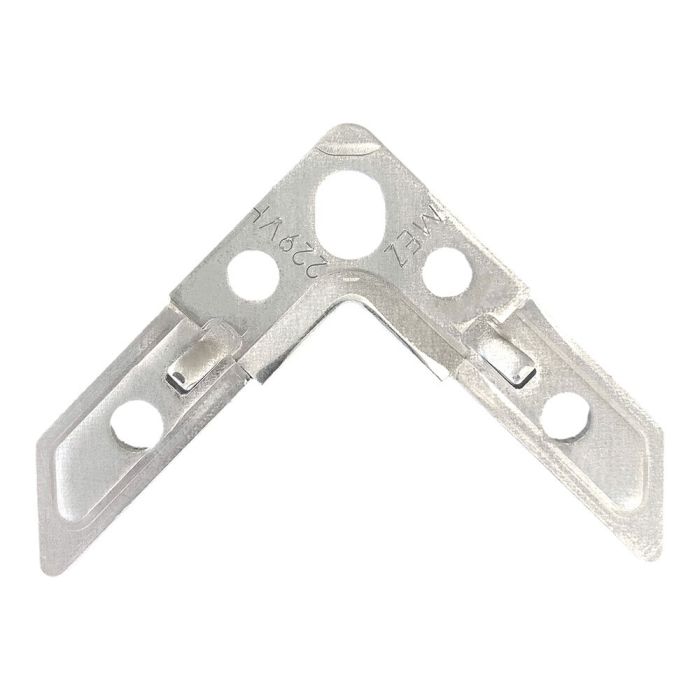

MEZ-CORNER 20 – Long hole, hook – galv.

Precision corner bracket for maximum stability in air duct construction

The MEZ-CORNER 20 – slotted, hook – galv. is a galvanised corner bracket for System 20, specially developed for durable, airtight and robust flanged frames. It is technically based on the tried-and-tested MEZ‑CORNER series and – like the almost identical model 229V – is made from robust, galvanized steel and available for orders of 500 units or more.

Thanks to slotted embossing, the corner bracket enables secure installation with a defined adjustment range. This is ideal for aligning profile frames quickly and neatly. The 73 mm leg length ensures high stability and optimal force distribution across the joint. At the same time, the precise folding creates a flat contact surface, reliably compressing sealing strips and flange profiles.

In air duct construction, every joint counts: leaky or unstable corners increase installation effort, cause leaks and lead to customer complaints. Particularly with System 20 ducts, corner brackets must offer high fitting accuracy, rigidity and repeatability – even under on-site conditions.

Key features

• Galv., robust corner bracket
• Suitable for MEZ CORNER / System 20
• Slotted hole for precise alignment
• High frame rigidity
• Reliable sealing thanks to flat contact surfaces
• Integrated hook for twist resistance and improved force transmission

Additional features

• Predictable quality through MEZ system compatibility (System 20)
• Galvanized steel for a long service life and reduced complaint rates
• Standardised specification – ideal for mass production and reliable delivery planning
• High corrosion resistance prevents premature wear
• Sturdy frame reduces the need for readjustments during inspections
• Fits exactly into existing MEZ System 20 infrastructures

Installation

• Slotted hole facilitates alignment and speeds up installation
• High dimensional stability – the frame retains its right angles even with large duct sides
• Clean crimping ensures a high level of tightness without the need for rework

Why is this corner bracket right for you?

The MEZ-CORNER 20 – slotted hole, hook – galv. combines precision, robustness and ease of installation with the added security of an integrated hook, which noticeably increases the stability of the flanged frames. The result is permanently airtight, dimensionally stable and reliable air duct connections. This is a crucial factor for efficient projects in the ventilation and building services sectors.

Application scenarios

• Production of rectangular air ducts (System 20)
• Mass production of flanged frames
• On-site installations with high stability requirements
• Repair and retrofitting of existing MEZ System 20 ducts

All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are not binding. Errors excepted.
