REVISION IRD 21-3 - VZ
200 x 100 mm, for insulation thickness 30–40 mm
Article number
620/3
REVISION IRD 21-3 - VZ is available to buy in increments of 1
Inspection cover suitable for all common insulation materials.
Prevents thermal bridges.
Heat-resistant from -70°C to +80°C.

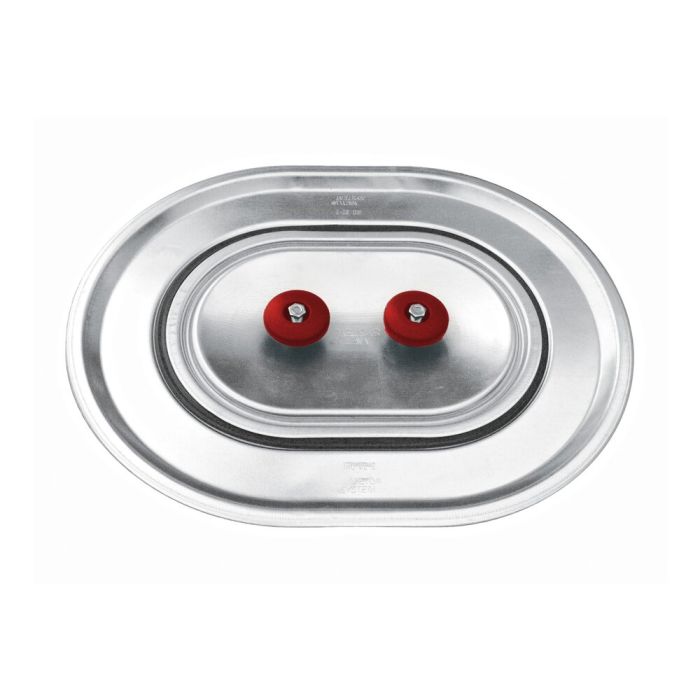

The IRD inspection cover is designed for insulated rectangular air ducts. The IRD cover is made of galvanized steel, with a cut-out size of 200 × 100 mm, and features a gasket made of ethylene–propylene–diene rubber. The permissible temperature range is between -70°C and +80°C, and the allowable insulation thickness for the IRD cover is 30–40 mm.
The duct wall thickness of the insulated duct may be a maximum of 2.0 mm, and the maximum permissible pressure is ±2,500 Pa.
Technical Information
- Application: Insulated rectangular air ducts
- Material: Galvanized steel
- Cut-out: 200 x 100 mm
- Insulation thickness: 30–40 mm
- Temperature range: -70°C to +80°C
- Max. pressure: ± 2,500 Pa
- Gasket material: Ethylene-propylene-diene rubber
- Gasket color: Black
- Handle material: Polyoxymethylene copolymer
- Handle: M8, M10, or M12
| Teilegruppe | 160105 |
|---|---|
| Material | Stahl verzinkt |
| Ausschnitt | 200 x 100 mm |
