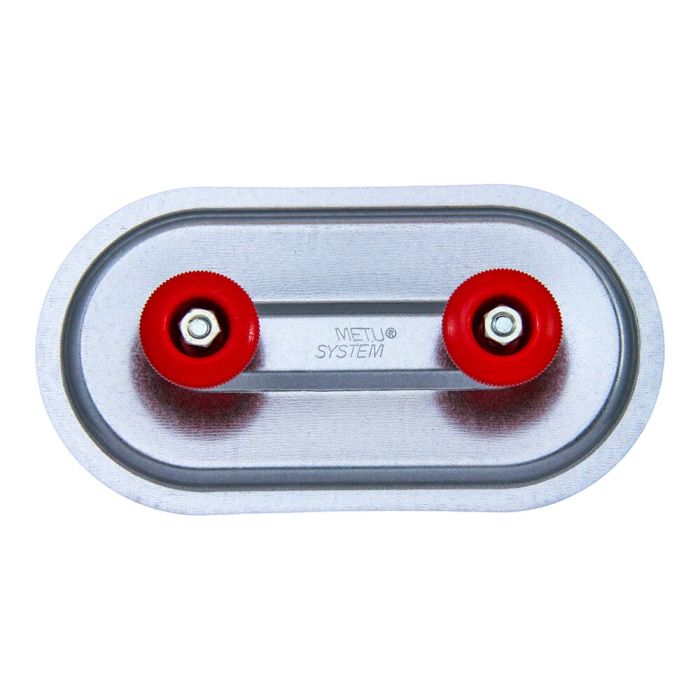

Access door RD 21 - V2A
200 x 100, stainless steel
Article number
601E
Access door RD 21 - V2A is available to buy in increments of 1
Opening size: 200 x 100 mm
With PE gasket
Made of stainless steel
MEZ-ACCESS DOOR RD 21 is an inspection opening for rectangular air ducts. The RD 21 is made of stainless steel and has a gasket made of polyethylene. The two knobs, which consists of POM, allow a comfortable handling and operation of the access door and they have a maximum tensioning force from 1.000 to 1.500 Nm.The MEZ-ACCESS DOOR RD 21 is useable for a temperature range from -70 to +70°C. The opening size is 200 x 100 mm, the clearance between the duct wall and the upper edge of the knob or lever in closed position should be approx. 35 mm and the maximum pressure is 2.500 Pa.
With PE gasket
Made of stainless steel
MEZ-ACCESS DOOR RD 21 is an inspection opening for rectangular air ducts. The RD 21 is made of stainless steel and has a gasket made of polyethylene. The two knobs, which consists of POM, allow a comfortable handling and operation of the access door and they have a maximum tensioning force from 1.000 to 1.500 Nm.The MEZ-ACCESS DOOR RD 21 is useable for a temperature range from -70 to +70°C. The opening size is 200 x 100 mm, the clearance between the duct wall and the upper edge of the knob or lever in closed position should be approx. 35 mm and the maximum pressure is 2.500 Pa.
| Teilegruppe | 160102 |
|---|---|
| Material | Edelstahl V2A |
| Verpackungseinheit | 1 St. |
