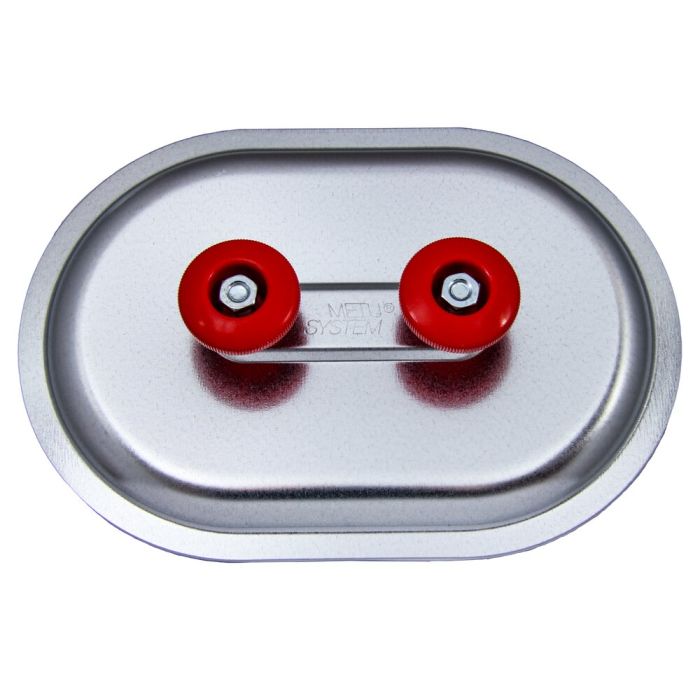

Access door RD 64 - V2A

Corrosion-resistant stainless steel access door for durable air ducts

The REVISION RD 64 – AISI 304 is a tried-and-tested stainless steel access door for rectangular, uninsulated air ducts. This access door has been specially developed for long-term use in professional air duct installation. Thanks to the duct wall clamping mechanism, whereby the duct wall is clamped between the inner and outer covers, and the integrated PE seal, the access door meets the airtightness requirements of ATC2 in accordance with DIN EN 16798-3. This also ensures reliable access for inspection, maintenance and cleaning work. The AISI 304 stainless steel version offers high corrosion resistance and is particularly suitable for demanding environmental conditions.

In day-to-day operations, operators, service companies and duct installers are frequently faced with the challenge of having to inspect ventilation systems on a regular basis. In doing so, the airtightness of the air duct system must not be permanently compromised. The REVISION RD 64 – AISI 304 solves this problem thanks to its robust stainless steel construction. It also features corrosion-resistant and ergonomic POM twist handles with a maximum clamping force of 2,000 to 3,000 Nm, as well as a durable PE seal. This ensures that the inspection opening remains reliable even after numerous maintenance cycles.

Technical highlights

• Access door made of AISI 304 stainless steel (1.4301 / ASTM 304)
• For rectangular, non-insulated air ducts
• Inner and outer doors made of AISI 304 stainless steel
• Cut-out dimensions (opening): 600 x 400 mm (RD 64)
• Radius: 200 mm
• Installation height: approx. 67 mm
• Duct wall thickness: maximum 5 mm
• Airtightness class: ATC2 in accordance with DIN EN 16798-3 & D in accordance with DIN EN 13779 TÜV NORD
• Approved positive and negative pressure: up to ≈ 5,000 Pa
• Temperature range: -70 °C to +70 °C
• Seal: polyethylene foam
• Seal colour: white
• Rotary handle material: polyoxymethylene copolymer
• Rotary handle: M12

Key features

• Quick access to duct sections for inspection and cleaning
• Reliable sealing thanks to closed-cell, cross-linked polyethylene foam
• Corrosion-resistant and ergonomic rotary handles ensure reliable opening even after prolonged use
• High corrosion resistance thanks to AISI 304 stainless steel
• Robust design for daily use on construction sites and in plant operations
• Reduction in leakage and energy losses
• Clean, professional access solution for building services projects

Additional features at a glance

• Cost-effective and durable solution for ventilation projects
• Quick access to relevant maintenance areas
• Facilitates regular inspection and hygiene checks
• Easy integration into rectangular, non-insulated air duct systems
• Standardised dimensions for common applications
• Ideal for environments with increased requirements for corrosion resistance

Installation

• Simple installation in rectangular, uninsulated air ducts
• The duct wall is securely clamped between the inner and outer covers
• No protruding screws in the grip area
• Installation height RD 64 approx. 67 mm
• Ideal for new builds, extensions and retrofitting of existing air ducts
• When installing stainless steel versions, screws and nuts should be treated with a suitable assembly paste and tightened carefully

Why is this access door suitable for you?

If you are looking for a robust, airtight and easy-to-install access door for rectangular, non-insulated air ducts, the REVISION RD 64 – AISI 304 offers the right solution. This high-quality access door combines a corrosion-resistant stainless steel construction with a reliable PE seal. This creates the ideal conditions for maintenance, inspection and the long-term preservation of value in ventilation systems. For specialist ductwork contractors, this AISI 304 stainless steel access door is a cost-effective and practical choice, particularly where there are heightened requirements for durability and longevity.

Application scenarios

• Ventilation and air conditioning systems in commercial premises
• Office and administrative buildings
• Industrial and production halls
• Public facilities
• Schools, hospitals and municipal buildings
• Maintenance access points in rectangular air duct systems
• System areas with increased requirements for corrosion resistance

Note on the scope of delivery

• Inner cover made of AISI 304 stainless steel
• Outer cover made of AISI 304 stainless steel
• Lock bolts made of AISI 304 stainless steel
• Conical springs made of AISI 304 stainless steel
• Stop washers made of AISI 304 stainless steel
• PE seal
• Ergonomic POM twist handles

Optionally available: Safety cable including M6 nut for additional safety

PE seal for reliable sealing in air duct construction

The integrated PE seal consists of a closed-cell, cross-linked polyethylene foam and ensures reliable sealing between the access door and the duct wall. The seal is available in a white finish and features a self-adhesive backing, facilitating simple and clean installation. Furthermore, the material is REACH-compliant and free from substances of very high concern in accordance with current REACH requirements.

The PE seal is designed for a temperature range of -40 °C to +70 °C and can withstand temperatures of up to +80 °C for short periods. This makes it suitable for numerous applications in ventilation and air-conditioning technology.

In terms of resistance to liquids, the PE seal offers limited protection against splashing water. For applications with increased requirements for liquid tightness, the specific operating conditions should be checked and, where necessary, alternative seal variants considered.

All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are not binding. Errors excepted. The PE seal is designed for a temperature range of -40 °C to +70 °C. It can withstand temperatures of up to +80 °C for short periods. It is therefore suitable for numerous applications in ventilation and air-conditioning technology.
