Access door RD 32 - V2A
Access door RD 32 - V2A | 300x200 mm, AISI 304
Article number
602E
Access door RD 32 - V2A is available to buy in increments of 1
Versatile inspection opening for rectangular air duct systems
Air tightness class D according to DIN EN 1507

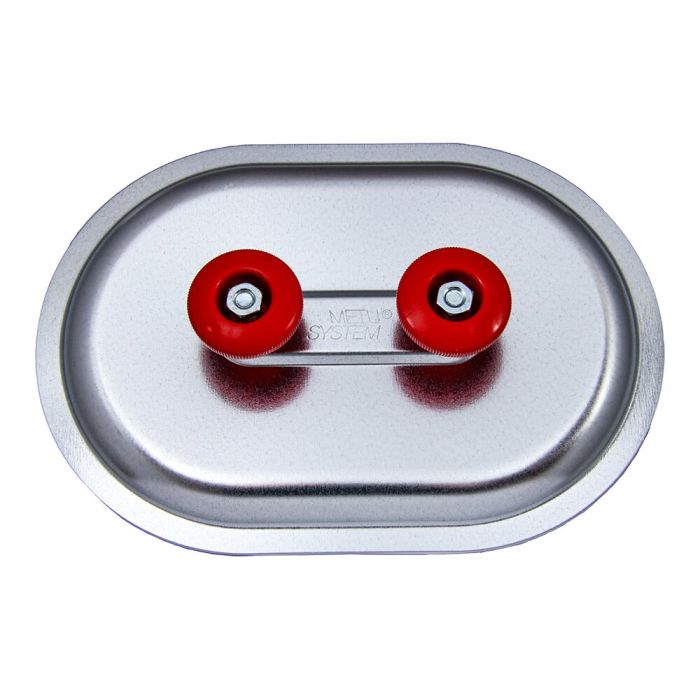

Access door RD 32 is an inspection door for rectangular air duct systems. The Access Door RD 32 is made of stainless steel and has a polyethylene seal. The two rotary handles, which allow two-handed and safe handling, are made of POM-C and have a maximum clamping force of 1,000 to 1,500 Nm.
The inspection opening RD 32 is designed for a temperature range of -70°C to +70°C and the cut-out of the RD 32 is 300 x 200 mm, the installation height is approx. 50 mm and the maximum pressure of the RD 32 is 2,500 Pa.
Air tightness class D according to DIN EN 1507
Access door RD 32 is an inspection door for rectangular air duct systems. The Access Door RD 32 is made of stainless steel and has a polyethylene seal. The two rotary handles, which allow two-handed and safe handling, are made of POM-C and have a maximum clamping force of 1,000 to 1,500 Nm.
The inspection opening RD 32 is designed for a temperature range of -70°C to +70°C and the cut-out of the RD 32 is 300 x 200 mm, the installation height is approx. 50 mm and the maximum pressure of the RD 32 is 2,500 Pa.
| Teilegruppe | 160102 |
|---|---|
| Material | Edelstahl V2A |
| Verpackungseinheit | 1 St. |
