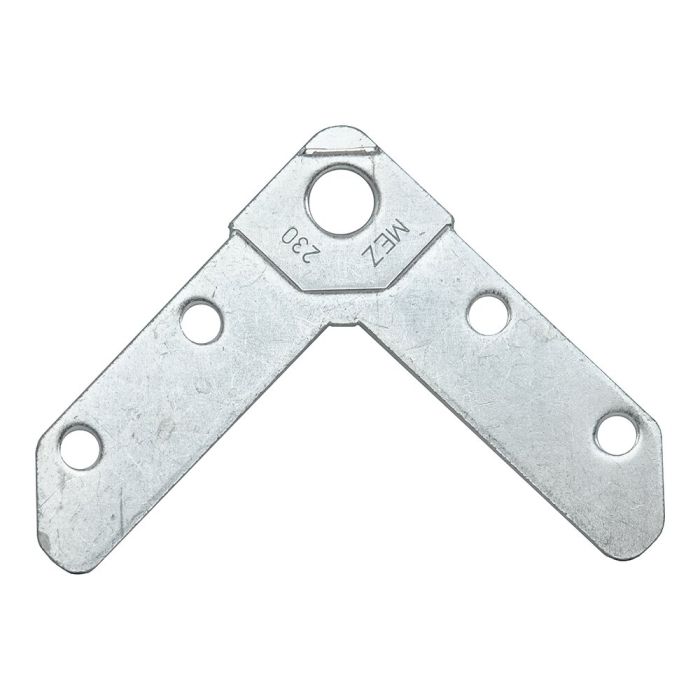

MEZ-CORNER-System 30
Round hole, short clearance, Screw hole 13 mm
Article number
230
MEZ-CORNER-System 30 is available to buy in increments of 250
Corner for attaching the duct wall
Clearance 10 mm
Material thickness 4,00 mm
MEZ-CORNER 230 is a corner, which finds its application in the production of air guiding systems, in combination with the profiles MEZ-STANDARD-FLANGE, MEZ-CLASSIC-FLANGE and MEZ-ISO-FLANGE. This is a round hole corner for the attachment of the duct wall. With a material thickness of 4.00 mm and a Clearance of 10 mm, the round hole corner is the ideal connecting piece.
Clearance 10 mm
Material thickness 4,00 mm
MEZ-CORNER 230 is a corner, which finds its application in the production of air guiding systems, in combination with the profiles MEZ-STANDARD-FLANGE, MEZ-CLASSIC-FLANGE and MEZ-ISO-FLANGE. This is a round hole corner for the attachment of the duct wall. With a material thickness of 4.00 mm and a Clearance of 10 mm, the round hole corner is the ideal connecting piece.
| Teilegruppe | 110202 |
|---|---|
| Material | Verzinkt |
| Schraubloch | 13 mm |
| Ausführung | mit kurzem Abzugsmaß und Rundloch |
| Dicke | 4 mm |
| Palette | 7.500 St. |
| Verpackungseinheit | 250 St. |
